Sixunited AXB35
One of the first Strix Halo boards, used in many Chinese PCs along with a cooling system. First revisions go back to at least October of 2024 (marked SU_AXB35_FB11).
Known PCs:
- GMKtec EVO-X2 (
SU_AXB35-02_FP11) - Bosgame M5
- FEVM FA-EX9
- Peladn YO1
Power

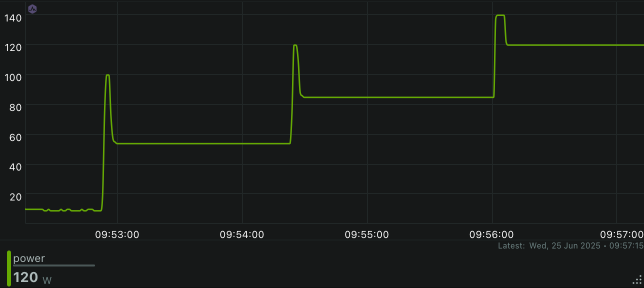

The board supports 3 different power limits - 55W (100W burst), 85W (120W burst), and 120W (140W burst):
See the guide on power and performance for more info on power modes.
Idle power draw from the wall should be around 12W with two SSDs installed.
Cooling
The cooling system is decent enough for this form factor, but could suffer from inadequate thermal interface conductivity. So if you plan to use a full 120W power limit, switching to PTM7950 or similar products is highly recommended. You'll need a 30x30 mm piece of 0.2-0.25 mm thickness.

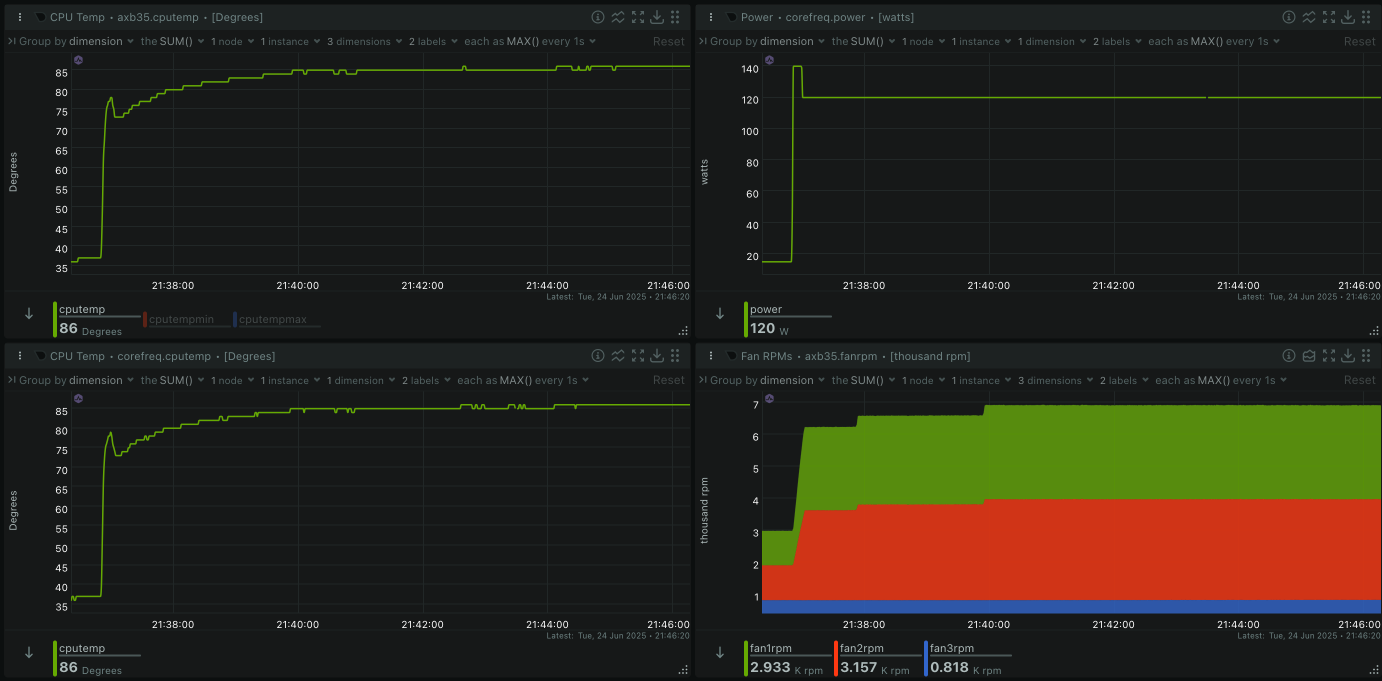

Here's what you could expect from a correctly working system with PTM7950 (ambient temp +25°C, bios version 1.05):
A guide for applying it on EVO-X2 is available here.
Facts
- RAM modules: MT62F4G32D8DV-023
- EC: ITE IT5570E-128
- Heatsink mount: 75x75 mm
- RAM thermal pads thickness: 0.5 mm
- Power input: 19.5V, 5.5x2.5mm barrel jack, center positive
Firmware
See Firmware page.
Photos
| Photo | Description |
|---|---|
 |

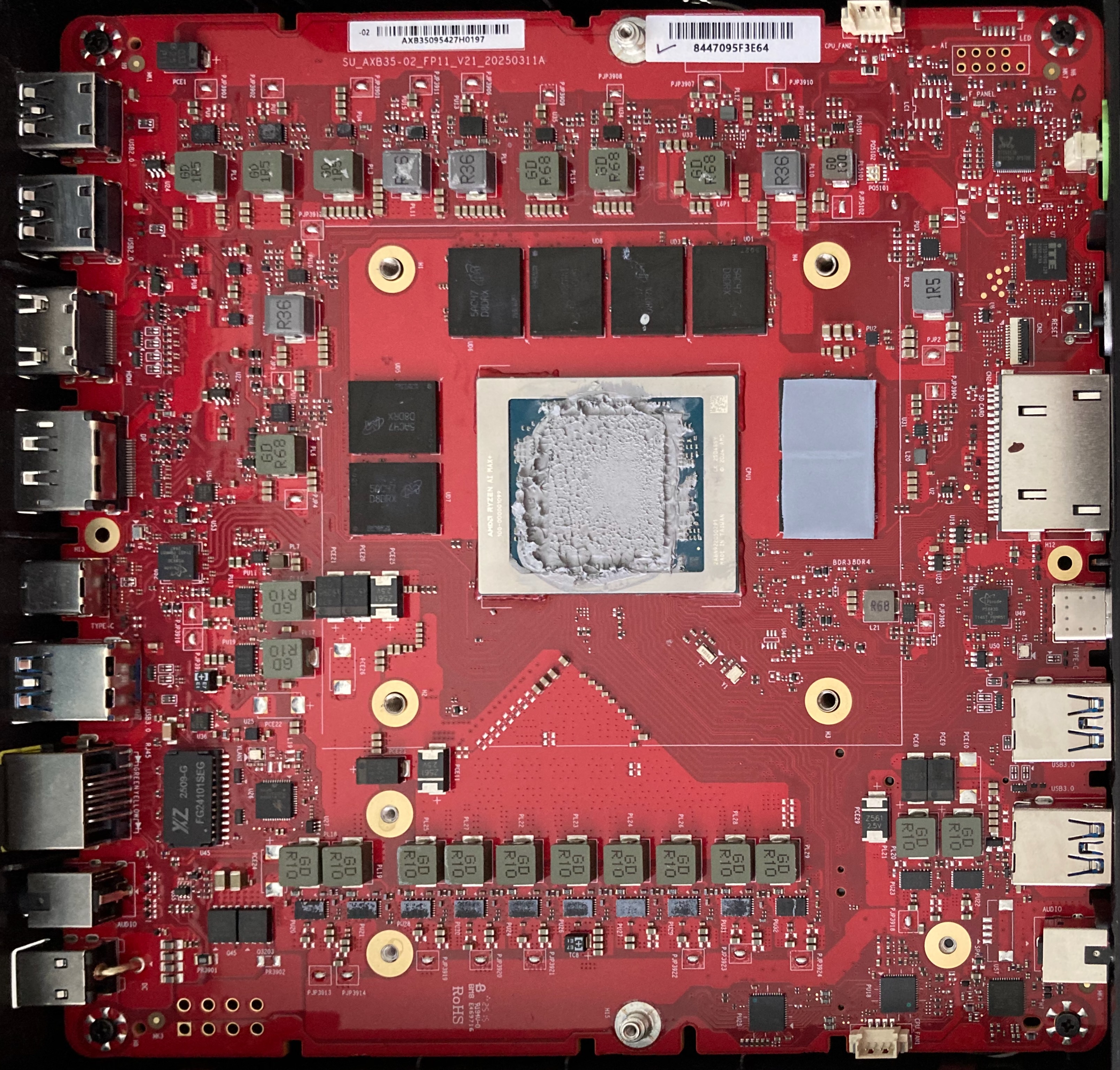

AXB35-02 from GMKtec EVO-X2 |
 |

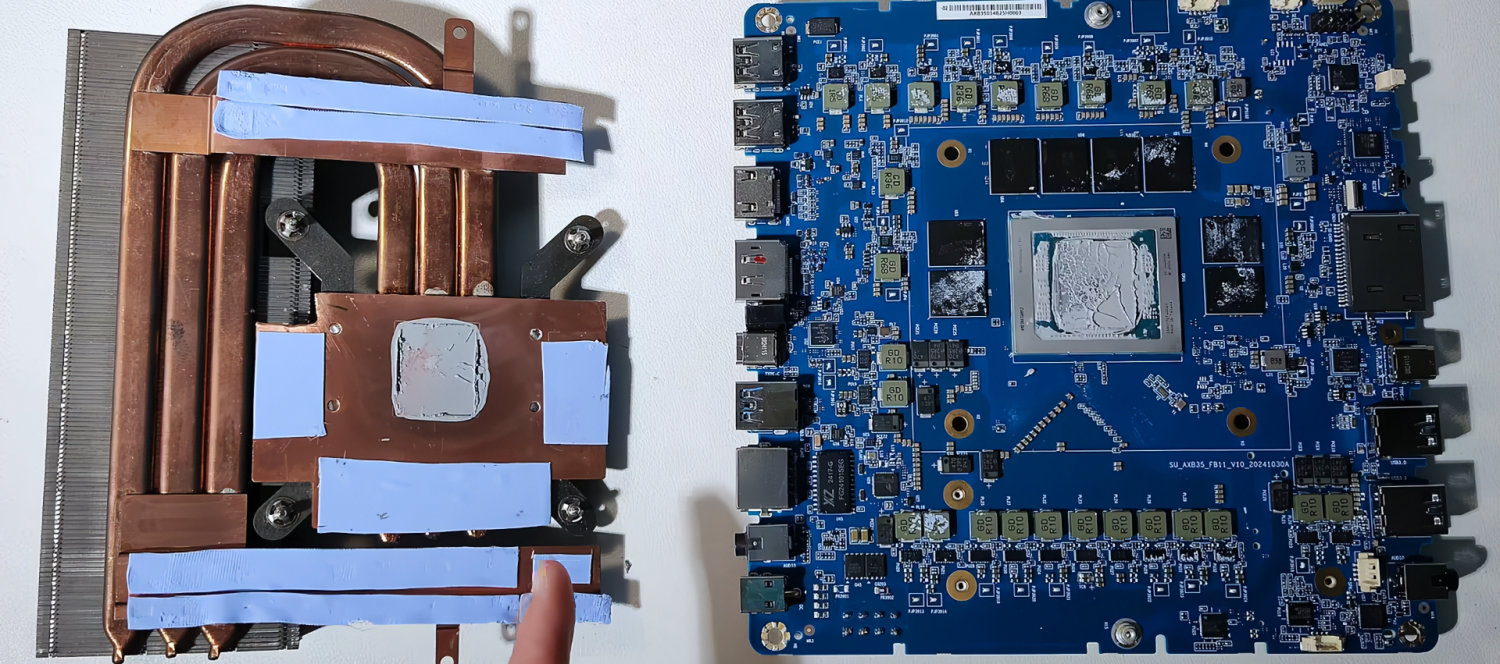

Earlier revision of the board with the cooling system |
